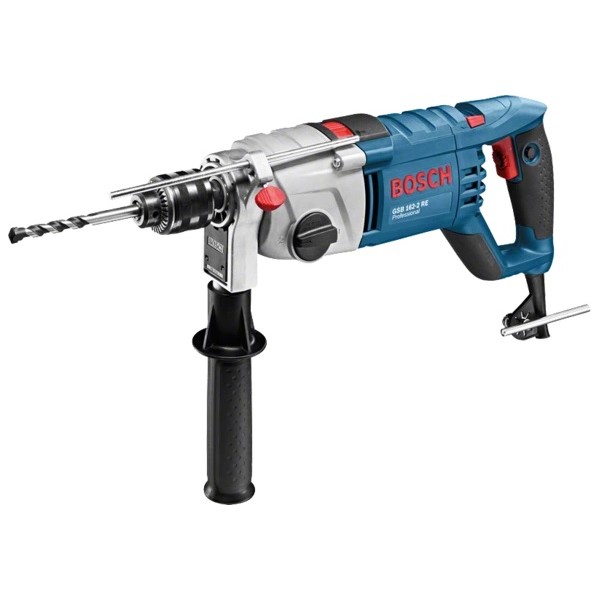

Powerful in every application – even when diamond dry drilling
- Very high torque for power-demanding applications
- Bosch high-performance motor (1500 W) with high overload capacity for the toughest applications
- Optimised speed for fast work progress when non-impact drilling with diamond core cutters up to 162 mm
TECHNICAL DATA
Additional data |
|
|---|---|
| Rated input power | 1,500 W |
| Weight | 4.8 kg |
| Tool dimensions (width) | 97 mm |
| Tool dimensions (length) | 464 mm |
| Tool dimensions (height) | 175 mm |
| No-load speed, 1st gear | 0 – 750 rpm |
| No-load speed, 2nd gear | 1,800 rpm |
| Power output | 840 W |
| Rated speed | 555 / 1,300 rpm |
| Rated torque | 17.0 / 5.0 Nm |
| Drill spindle connecting thread | 5/8″ – 16 UN |
| Chuck capacity, min./max. | 3 – 16 mm |
| Impact rate at no-load speed | 0 – 12,750 / 30,600 bpm |
